Pleated Style

Pinch Pleat
Divided into Double Pinch Pleat and Triple Pinch Pleat.
Come with adjustable plastic pin hooks.
It works for the track, traverse rod, channel rod, and pole with rings.
Panel width: From left pleat end to right pleat end (2-inch side tucks are not included.)
Pinch Pleat (Double Pinch Pleat): Fabric width 200%.
Triple Pleat (Triple Pinch Pleat): Fabric width 230%.
Suitable for: Medium to heavyweight fabrics, simplicity and elegance spaces.
Note: Measured from eyelet ring hook to floor.

Pinch Pleat with Back Tab
A classic pleat style with back tab.
Comes with adjustable plastic pin hooks.
Tab height: 3.1 inches, fitting for rods with a diameter of 1.5 inches and below.
Can be hung on rings or rods directly.
Pay attention to height measurement due to 2 different ways of hanging.
Suitable for: Light to medium weight fabrics, modern homes or commercial spaces.
Note: Measured from eyelet ring hook to floor.

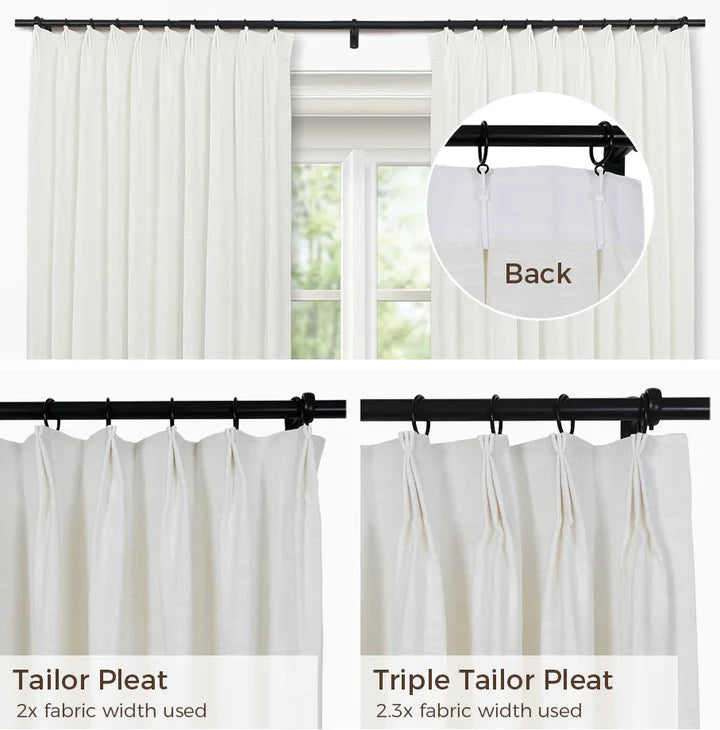

Tailor Pleat
Types: Divided into Double Tailor Pleat and Triple Tailor Pleat.
Similar to pinch pleat but have a larger opening in the pleat bottom.
Comes with adjustable hooks.
It works for track, traverse rod, channel rod, and pole with rings.
Tailor Pleat (Double Tailor Pleat): Fabric width 200%. Pleat space apart 5.5-6.5 inches.
Triple Tailor Pleat: Fabric width 230%. Pleat space apart 5.5 inches.
Suitable for: Medium to heavyweight fabrics, high-end or formal spaces.
Note: Measured from eyelet ring hook to floor.

Goblet
More gathered than other heads.
Comes with a metal needle hook.
It works for track, traverse rod, channel rod, and pole with rings.
Size: Fabric width 200%.
Pleat space apart 5.5 inches.
Goblet height 3.5 inches.
Suitable for: Heavyweight or thick fabrics, elegant and refined spaces.
Note: Measured from eyelet ring hook to floor.

Inverted Box Pleat
Two equal pieces of fabric folded over each other, with the centers of the folds converging on the front and the back in the shape of a box pleat.
Come with S-shaped metal pin hooks.
It works for rods with rings and track.
Size: Fabric Width 200%.
Pleat space apart 5 inches.
Suitable for: Medium to heavyweight fabrics with good drape, modern homes or commercial spaces.
Note: Measured from eyelet ring hook to floor.

French Pleat
Fabric is tightly gathered into a pencil-like pleat, formed into an even pleat by sewing tape into the top and pulling it up with a string.
Comes with plastic pleat tape hooks.
It works for pure linen curtains.
Fabric Width: 200%
Suitable for: Light to medium weight fabrics, country style rooms or small spaces like kitchen.
Note: Measured from eyelet ring hook to floor.
Pleats Space & Numbers for Various Width
- The width and space of pleats may vary slightly depending on your track or pole length. Normally pleats space apart 5.5 inches. Provided you have special certain pleats spacing requirement, please let us know for custom made specially, you need pay extra charge fee.
- Pleats pin hooks: 10 pleats for 50 in width, 14 pleats for 72 in width, 16 pleats for 84 in width, 19 pleats for 100 in width, 21 pleats for 110 in width, 23 pleats for 120 in width, 29 for 150 in width.
Rod Length (inch) | Per Panel Width (inch) | Fabric Usage (inch) | Numbers of rod rings & pleats | Pleats space apart distance (inch) | Stacked width (inch) |
---|---|---|---|---|---|
26 | 15 | 34 | 4 | 4 3/4 | 3 |
34 | 19 | 42 | 5 | 5 | 3 7/8 |
40 | 22 | 48 | 5 | 5 1/2 | 4 3/8 |
46 | 25 | 54 | 6 | 5 | 5 |
52 | 28 | 60 | 6 | 4 3/4 | 5 5/8 |
60 | 32 | 68 | 7 | 5 3/8 | 6 3/8 |
72 | 38 | 80 | 9 | 4 7/8 | 7 5/8 |
80 | 42 | 80 | 9 | 5 3/8 | 8 3/8 |
88 | 46 | 87 | 10 | 5 1/8 | 9 |
96 | 50 | 94 | 10 | 5 5/8 | 10 |
100 | 52 | 98 | 10 | 5 7/8 | 10 3/8 |
116 | 60 | 112 | 12 | 5 1/2 | 12 |
128 | 66 | 123 | 13 | 5 3/8 | 13 14 |
136 | 70 | 130 | 14 | 5 1/2 | 14 |
140 | 72 | 134 | 15 | 5 1/2 | 15 1/4 |
148 | 76 | 141 | 15 | 5 3/8 | 16 |
156 | 80 | 148 | 16 | 5 1/4 | 16 7/8 |
164 | 84 | 155 | 17 | 5 5/8 | 18 |
176 | 90 | 166 | 19 | 5 5/8 | 19 1/4 |
188 | 96 | 177 | 19 | 5 3/8 | 19 5/8 |
192 | 98 | 180 | 19 | 5 5/8 | 20 |
196 | 100 | 184 | 19 | 5 1/2 | 22 |
216 | 110 | 202 | 21 | 5 1/2 | 24 |
236 | 120 | 220 | 23 | 5 1/2 | 24 |
For pinch pleat, tailor pleat, inverted pleat, and goblet style (Dimension in inches)
Finish Width | Fullness | Side Hem | Pleats Numbers | Pleat Depth | Side Tuck | Pleats Space |
---|---|---|---|---|---|---|
25 | 2 | 1 | 6 | 1 1/4" | 2" | 5" |
30 | 2 | 1 | 7 | 1 1/4" | 2" | 5" |
40 | 2 | 1 | 8 | 1 1/4" | 2" | 5 3/4" |
50 | 2 | 1 | 10 | 1 1/4" | 2" | 5 5/8" |
60 | 2 | 1 | 12 | 1 1/4" | 2" | 5 1/2" |
70 | 2 | 1 | 14 | 1 1/4" | 2" | 5 3/8" |
80 | 2 | 1 | 16 | 1 1/4" | 2" | 5 3/4" |
90 | 2 | 1 | 17 | 1 1/4" | 2" | 5 5/8" |
100 | 2 | 1 | 19 | 1 1/4" | 2" | 5 5/8" |
110 | 2 | 1 | 21 | 1 1/4" | 2" | 5 3/4" |
120 | 2 | 1 | 23 | 1 1/4" | 2" | 5 1/2" |
For triple pleat and triple tailor pleat style (Dimension in inches)
Finish Width | Fullness | Side Hem | Pleats Numbers | Pleat Depth | Side Tuck | Pleats Space |
---|---|---|---|---|---|---|
25 | 2.3 | 1 | 6 | 1 1/4" | 2" | 5" |
30 | 2.3 | 1 | 7 | 1 1/4" | 2" | 5" |
40 | 2.3 | 1 | 8 | 1 1/4" | 2" | 5 3/4" |
50 | 2.3 | 1 | 10 | 1 1/4" | 2" | 5 5/8" |
60 | 2.3 | 1 | 12 | 1 1/4" | 2" | 5 1/2" |
70 | 2.3 | 1 | 14 | 1 1/4" | 2" | 5 3/8" |
80 | 2.3 | 1 | 16 | 1 1/4" | 2" | 5 3/4" |
90 | 2.3 | 1 | 17 | 1 1/4" | 2" | 5 5/8" |
100 | 2.3 | 1 | 19 | 1 1/4" | 2" | 5 5/8" |
110 | 2.3 | 1 | 20 | 1 1/4" | 2" | 5 3/4" |
120 | 2.3 | 1 | 22 | 1 1/4" | 2" | 5 3/4" |

Order Correct Width & Length
- Panel width is the width that pleats already set. 200%-230% fabric width is used for pleats and folds to create finished width you order.
- Length is measured from the eyelet ring where the curtain hooks are attached to floor.
- If rod or track length is 100 inches, add possible overlap and gap privacy, then order 1 panel 100 inches width or 2 panels each 50 inches width.

Stacked Width
- You might want window to show up completely when drapery is opened, in this case, you need consider stacked width to determine rod length. Normally stacking width account for 20% of drapery width.

Adjustable Pin Hook
- Adjustable pin hook has a ratchet system to make them adjustable within 3 inches for height. Pin hooks are included, but drapery rod rings are not included.
- Pin hook height 3.5 inches. Pleat depth 1 inch. White back tape width 3-1/8 inches. Side hem 1 inch, bottom hem 3-1/8 inches.
Soft Top

4-in-1 Versatile 4-in-1 construction
Hook Belt: Hang with metal pin hooks.(included).
Clip Ring: Hang with clip rings.(not included).
Rod Pocket: Hang with a rod pocket for a bunched-like look.
Back Tab: Hang with the back tab for pleated-like look.
Come with hooks.
It works for rods with rings, rods with clip rings and poles.
Rod pocket and hook belt metal pin hook size: 3 inches.
Hook belt metal pin hook size: 3 inches.
Side hem 1 inch, bottom hem 4 inches.
Suitable for: Light to medium weight fabrics, and spaces with diverse decorative needs.
Note: 6 pin hooks per 40 inches width.
Measured from eyelet ring hook to floor.

Flat Hooks
Features: Adjustable plastic hooks 3 inches.
Side hem 1 inch, bottom hem 4 inches.
It works for rods with rings.
Suitable for: Light to medium weight fabrics, and spaces with frequent curtain usage.
Note: 6 pin hooks per 40 inches width.
Measured from eyelet ring hook to floor.

Tab Top
Suitable for a 1.5-inch diameter rod.
Side hem 1 inch, bottom hem 3-1/8 inches.
It works for rods or rods with clip rings.
Tab height: 4 inches.
Pocket size: 3 inches.
Suitable for: Medium to heavyweight long curtains, elegant or tidy spaces.
Note: 6 pin hooks per 40 inches width.
Measured from top of rod to floor.

Rod Pocket
Suitable for a 1.5-inch diameter rod.
Side hem 1 inch, bottom hem 3-1/8 inches.
It works for rods or rods with clip rings.
Tab height: 4 inches.
Pocket size: 3 inches.
Suitable for: Medium to heavyweight long curtains, elegant or tidy spaces.
Note: 6 pin hooks per 40 inches width.
Measured from top of rod to floor.

Back Tab
Suitable for a 1.5-inch diameter rod.
Side hem 1 inch, bottom hem 3-1/8 inches.
It works for rods or rods with clip rings.
Tab height: 4 inches.
Pocket size: 3 inches.
Suitable for: Medium to heavyweight long curtains, elegant or tidy spaces.
Note: 6 pin hooks per 40 inches width.
Measured from top of rod to floor.

Grommet
Inside diameter 1.6 inches, outside diameter 2.25 inches.
Grommet panels have the least stack back out of all the heading styles.
It works for curtain rods or tracks with hooks.
Number of grommets: 6 grommets for 42 in wide, 8 for 50 in, 10 for 72 in, 12 for 84 in, 14 for 100 in, 16 for 120 in, 22 for 150 in, 26 for 180 in.
Available grommet color: Antique Bronze, Aluminum, Nickel, Black
Suitable for: Light to medium weight fabrics, and clean modern spaces.
Note: Measured from top of rod to floor.
Header Style Match Rod Track

The pleated curtains come with hooks that can be adjusted up and down by about 3 inches. The Track height is about 1 3/4 inches. We can cover the track by adjusting the hook.
When the curtain header covers the track, it may cause the fabric to turn outward slightly, which can compromise both the appearance and the smooth operation of the curtains.
For optimal performance and aesthetics, we do not recommend installing the curtains in this manner.
